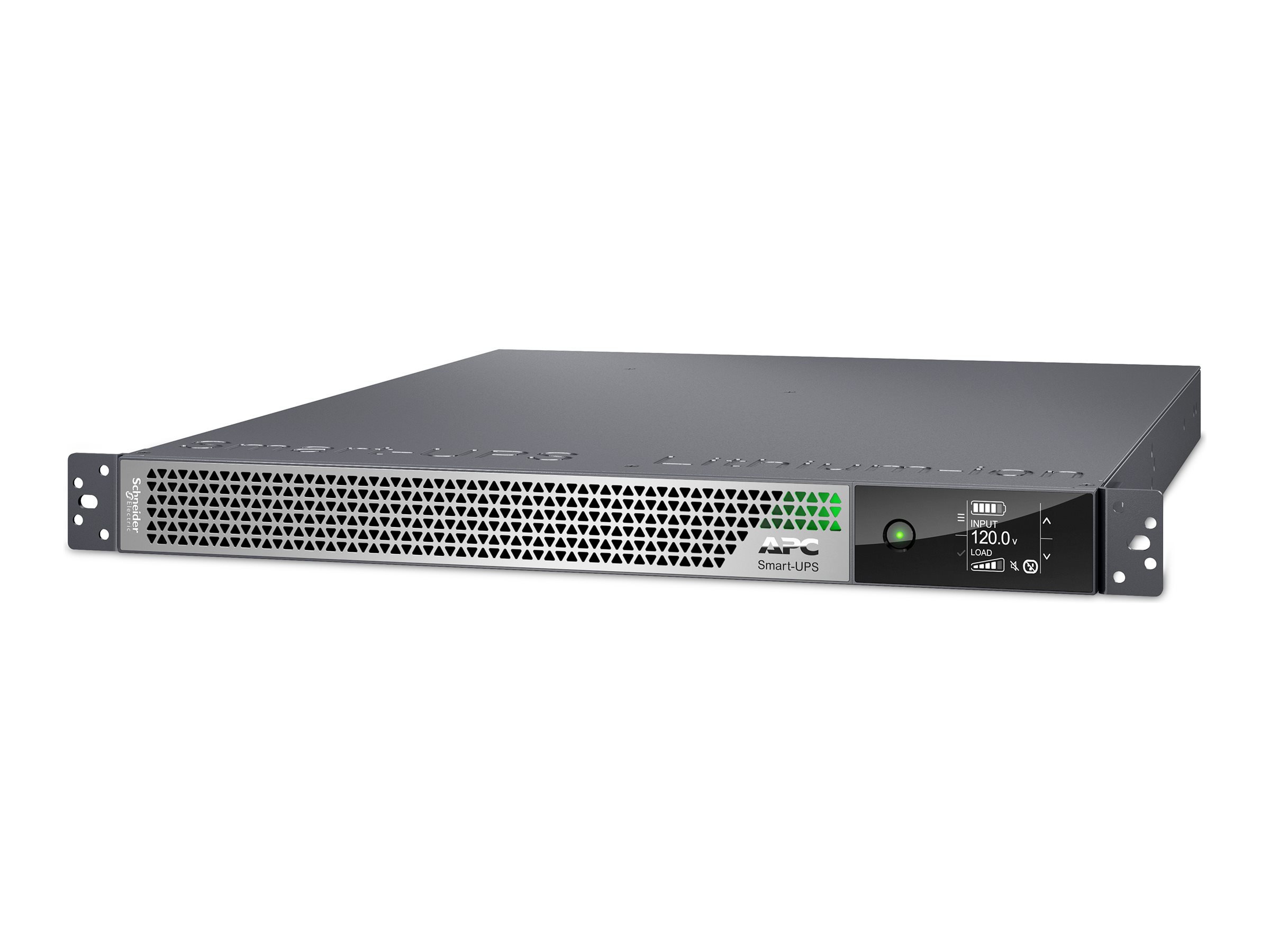

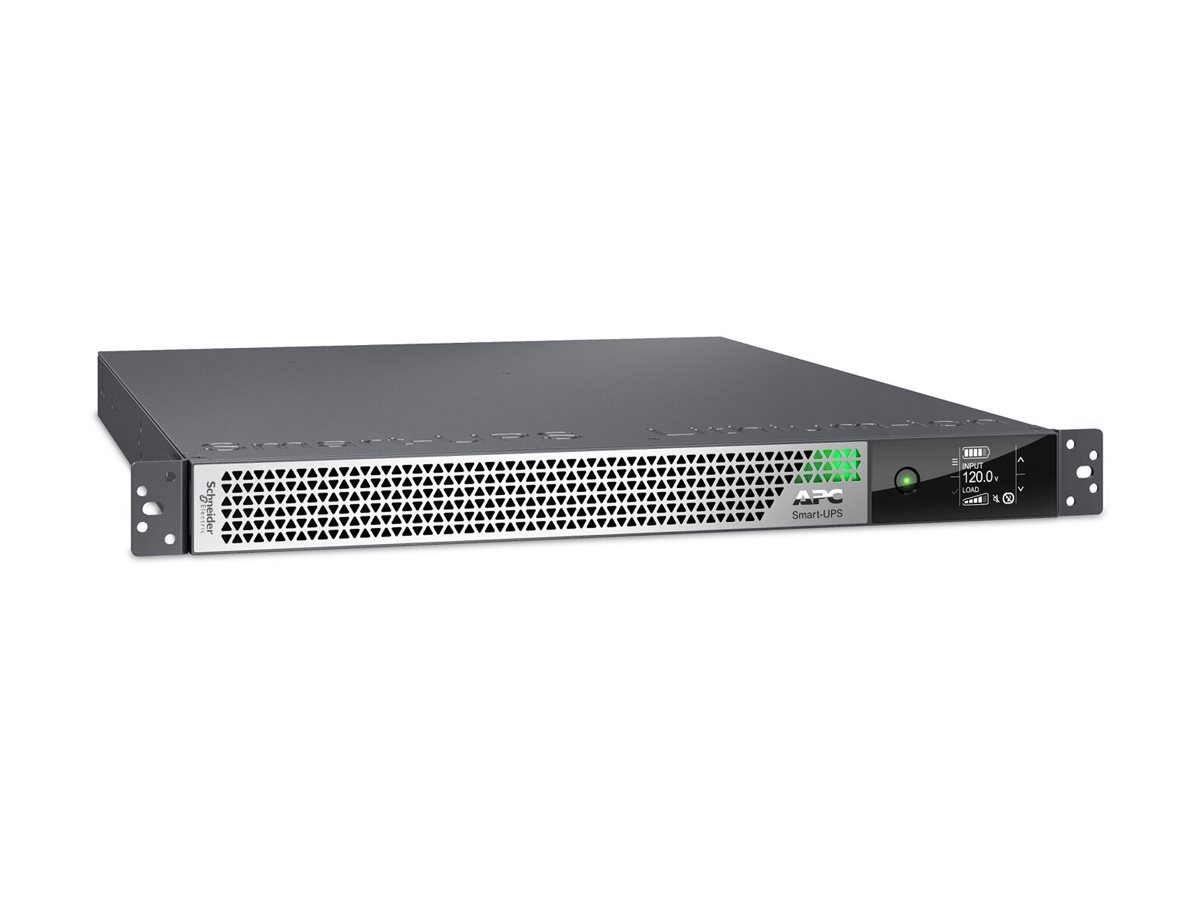

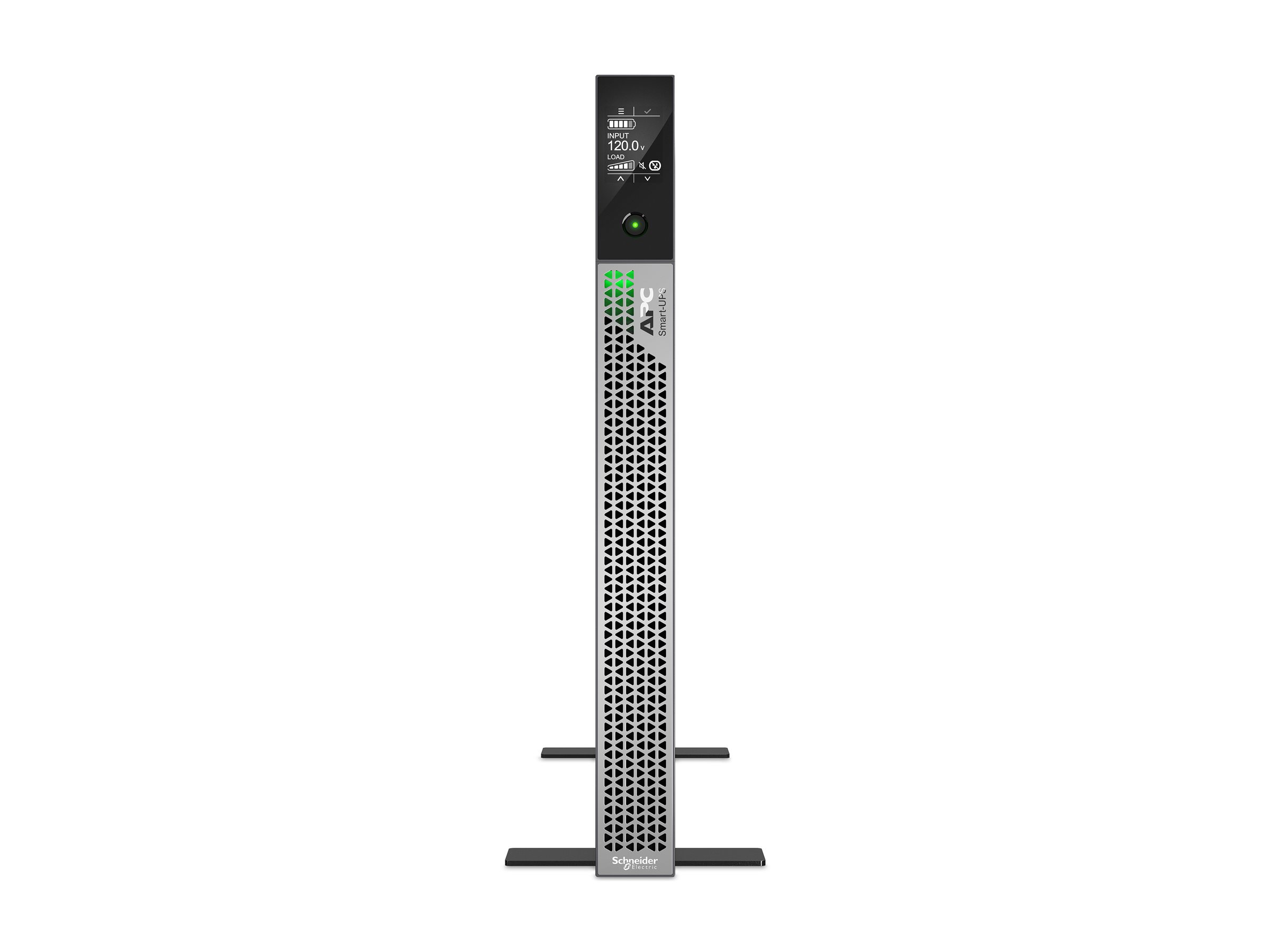

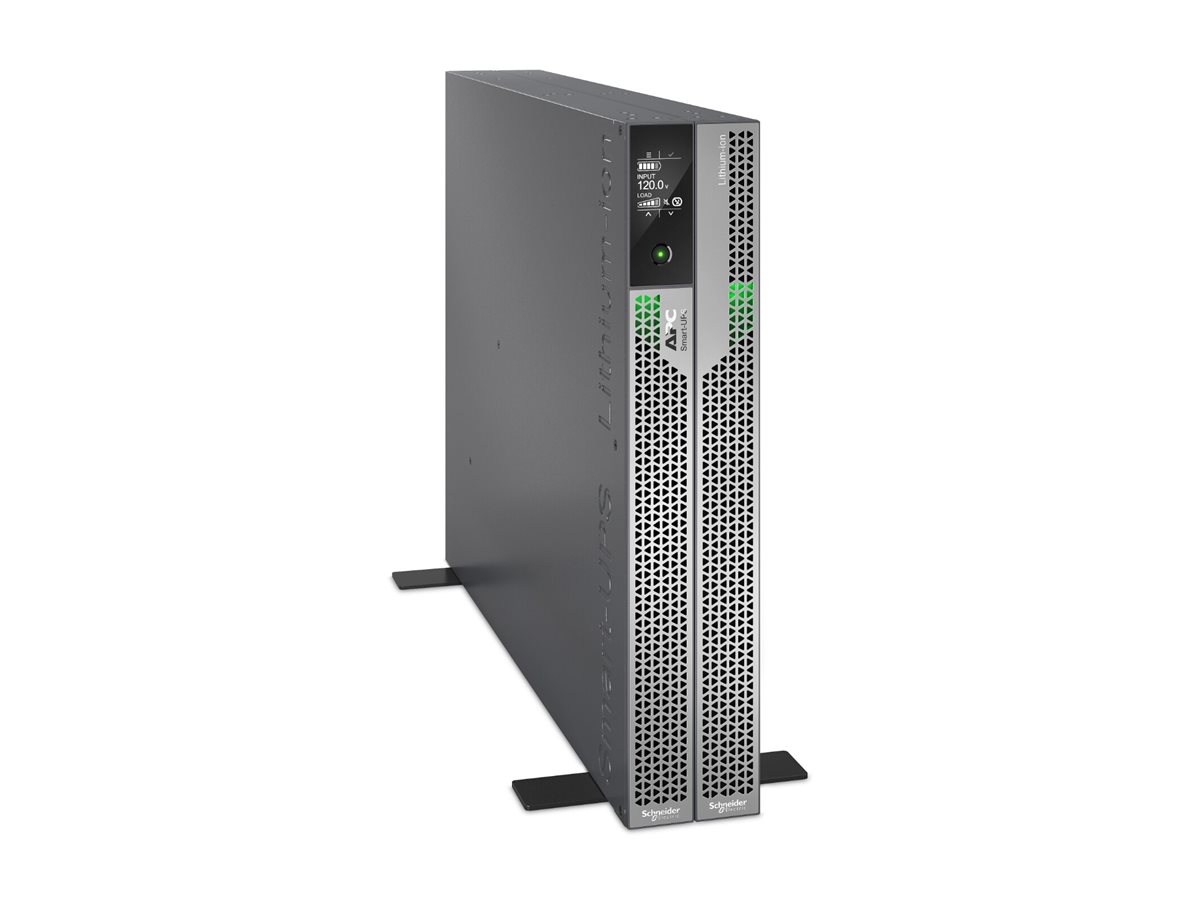

APC Smart-UPS Ultra SRTL2K2RM1UC

MSRP$7,040.00
$5,306.00
APC Smart-UPS Ultra SRTL2K2RM1UC
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS (rack-mountable / external)
  • AC 120/125 V
  • 2200 Watt
  • 2200 VA
  • 1-phase
APC Smart-UPS Ultra SRTL2K2RM1UC
  • UPS (rack-mountable / external)
  • AC 120/125 V
  • 2200 Watt
  • 2200 VA
  • 1-phase
  • 5.16 Ah
  • Ethernet
  • output connectors: 6
  • 2.4 m cord
  • for P/N: SRTL50RMBP1U-LI
  Additional Details
Price: $5,306.00
MSRP: $7,040.00
Mfr Part #: SRTL2K2RM1UC
SHI Part #: 44278261
Category: Uninterruptible power supplies
UNSPSC: 39121011
Manufacturer: APC by Schneider Electric
Product Type: Hardware

Servers

APC NetShelter SX Gen 2
APC NetShelter SX Gen 2
  • Rack cabinet
  • 2124H x 750W x 1070D mm, with sides
  • floor-standing
  • black
  • 42U
  • 19"
MSRP $4,765.00 $3,477.00
APC NetShelter SX Gen 2
APC NetShelter SX Gen 2
  • Rack cabinet
  • 2258H x 600W x 1070D mm, with Sides
  • floor-standing
  • black
  • 48U
  • 19"
MSRP $4,275.00 $3,121.00

Storage Networking (SAN)

APC Basic Rack-Mount PDU
APC Basic Rack-Mount PDU
  • Power distribution strip (rack-mountable)
  • AC 120 V
  • 1.8 kW
  • input: NEMA 5-15
  • output connectors: 10 (NEMA 5-15)
  • 1U
MSRP $234.00 $181.00
APC Metered Rack PDU
APC Metered Rack PDU
  • Power distribution strip (rack-mountable)
  • AC 208 V
  • 3-phase
  • RS-232
  • input: NEMA L21-20
  • output connectors: 48 (power IEC 60320 C13, IEC 60320 C19, NEMA 5-20)
MSRP $1,625.00 $1,166.00
APC Metered Rack PDU
APC Metered Rack PDU
  • Power distribution strip (rack-mountable)
  • AC 200/208/230 V
  • Ethernet, RS-232
  • input: NEMA L6-20
  • output connectors: 20 (power IEC 60320 C13, IEC 60320 C19)
  • 0U
MSRP $1,175.00 $842.00
General Information
CategoryUninterruptible power supplies
DescriptionAPC Smart-UPS Ultra SRTL2K2RM1UC - UPS (rack-mountable / external) - AC 120/125 V - 2200 Watt - 2200 VA - 1-phase - 5.16 Ah - Ethernet - output connectors: 6 - 2.4 m cord - for P/N: SRTL50RMBP1U-LI
ManufacturerAPC by Schneider Electric
MSRP$7,040.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth56 cm
Dimensions & Weight / Height4.3 cm
Dimensions & Weight / Weight15.9 kg
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Networking / Remote Management InterfaceEthernet
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty6
Power Device / Power Capacity (VA)2200 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 120/125 V
Product TypeUPS
Service & Support / Type5-year warranty
Battery
Capacity5.16 Ah
TypeExpandable
Voltage Provided50.4 V
Compatibility Information
Designed ForP/N: SRTL50RMBP1U-LI
Dimensions & Weight
Depth56 cm
Height4.3 cm
Weight15.9 kg
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth76.4 cm
Shipping Height27.8 cm
Shipping Weight24.2 kg
Shipping Width57.65 cm
Environmental Parameters
Humidity Range Operating0 - 95% RH (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x sensor
  • 1 x management (Ethernet)
  • 1 x EPO (emergency power off)
  • 1 x management
General
Cord Length2.4 m
Device TypeUPS - rack-mountable / external
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Cables Included
  • USB cable - external
  • Network cable - external
Compliant StandardsFCC Part 15 A, IP20
Features1 switched outlet group, LCD display

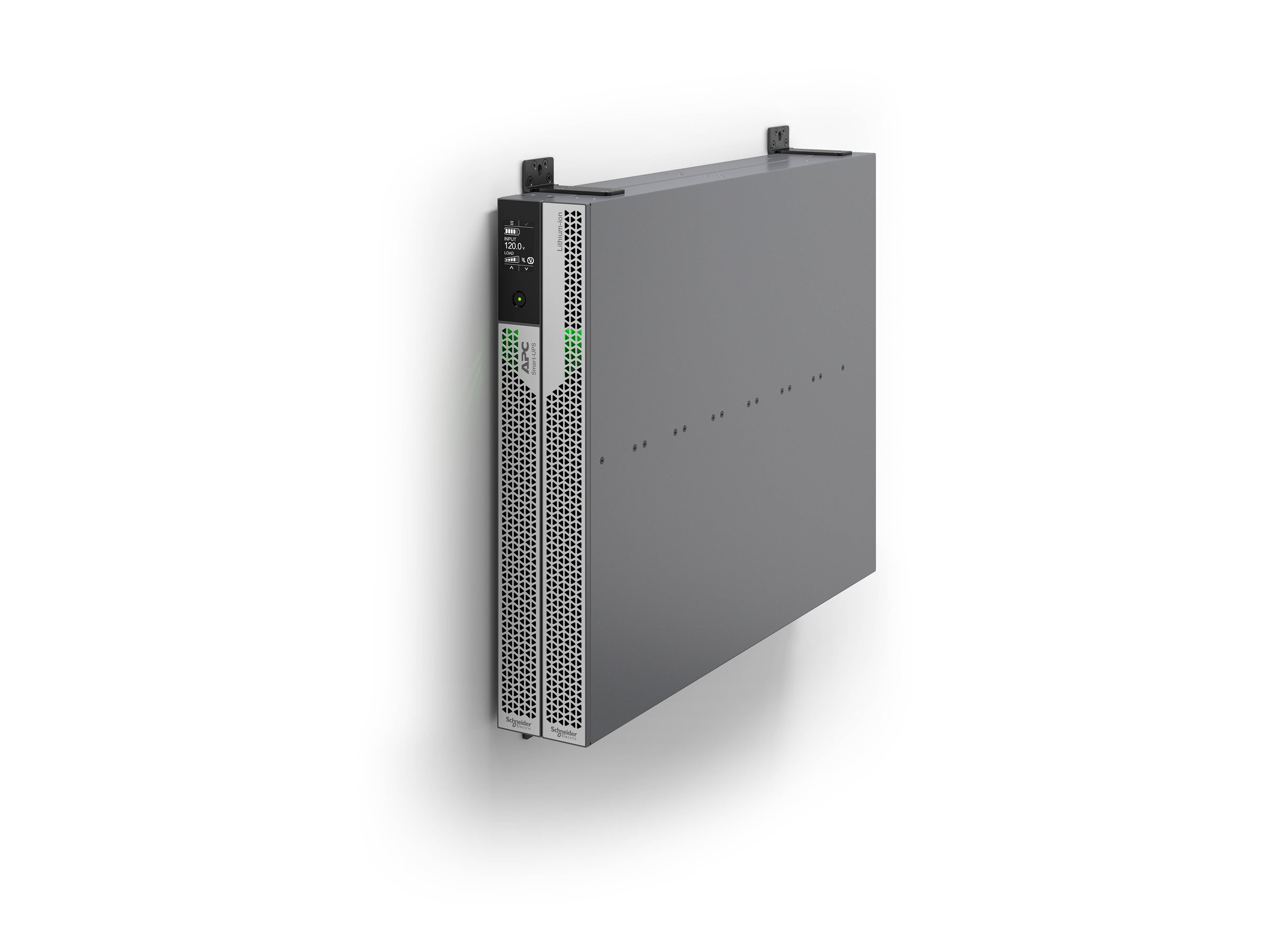

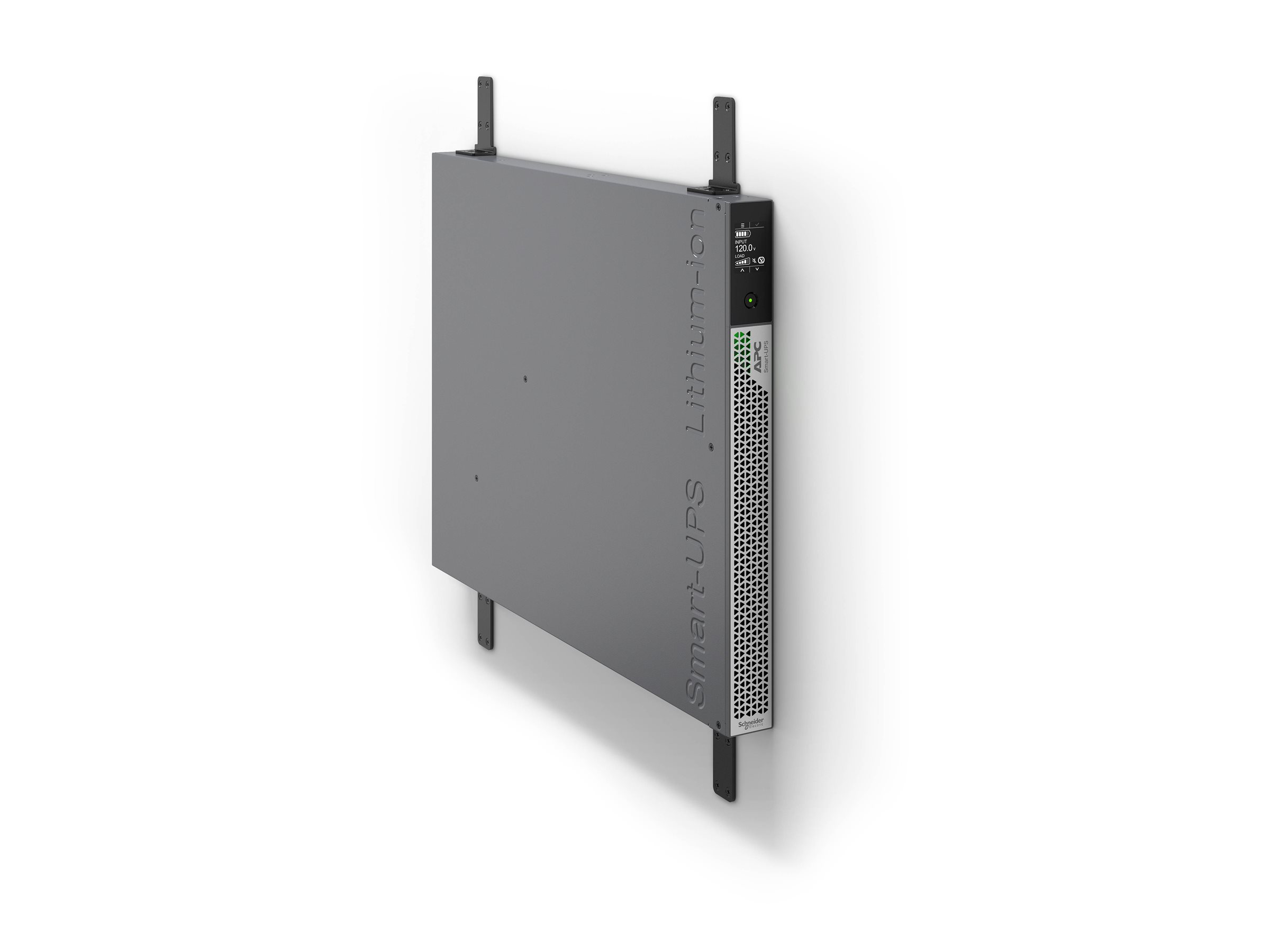

Included AccessoriesBezel, wall mounting bracket, EPO plug, rack mounting rails, screws, washers
Rack Mounting KitIncluded
Networking
Remote Management InterfaceEthernet
Power Device
Circuit ProtectionCircuit breaker
Frequency Provided50/60 Hz ± 3Hz
Frequency Required50/60 Hz ± 3Hz
Input Connectors1 x power NEMA L5-30P
Input VoltageAC 120/125 V
Input Voltage Margin± 5 V
Input Voltage RangeAC 85 - 125 V
Input Wiring1-phase
Output VoltageAC 120/125 V 50/60 Hz
Power Capacity2200 Watt / 2200 VA
Power Capacity Details3 kVA at 125 V, 2.88 kVA at 120 V
Power Modules Qty1

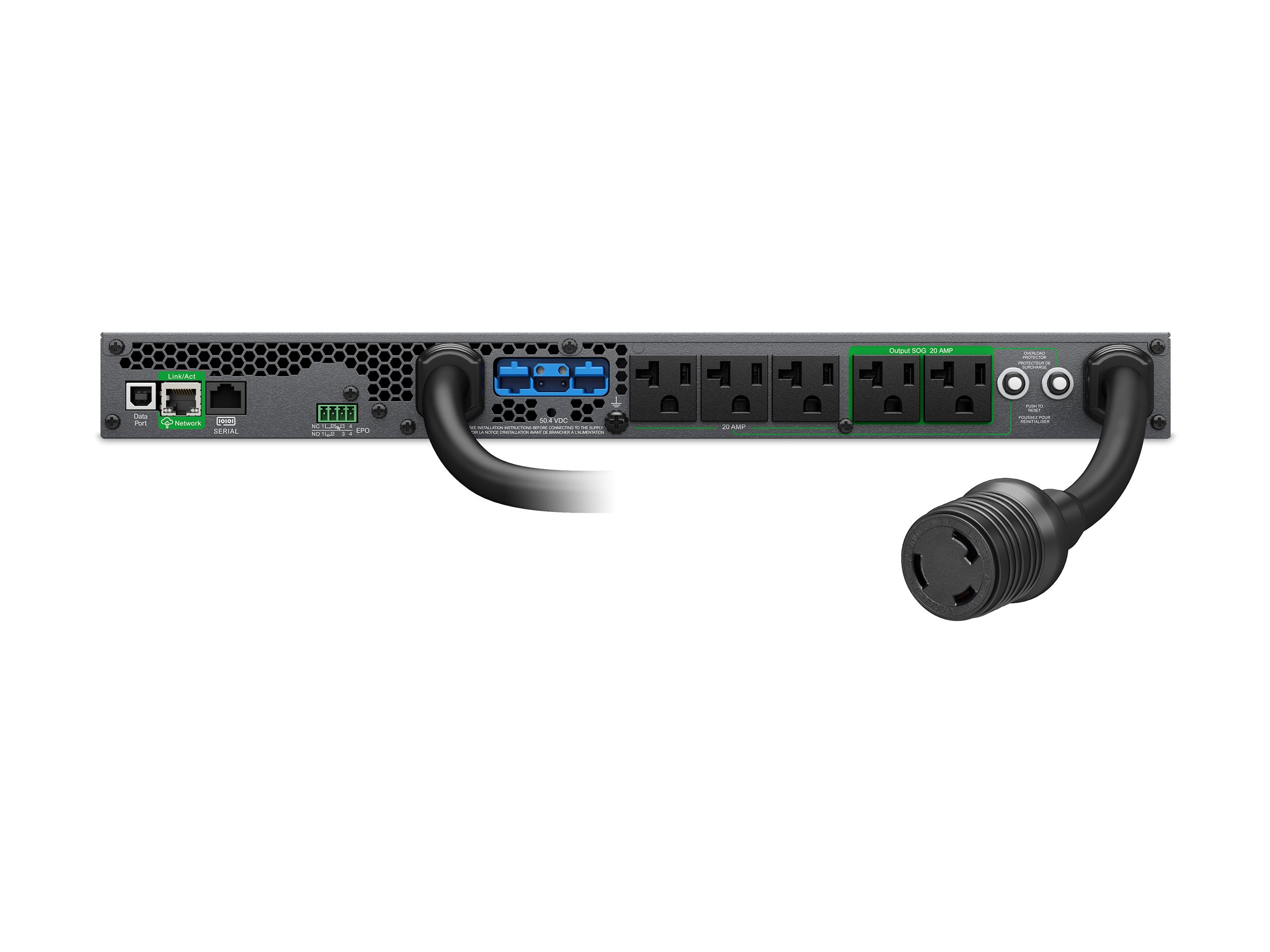

Power Output Connectors Details
  • 5 x power NEMA 5-20R
  • 1 x power NEMA L5-20R
UPS TechnologyOn-line
